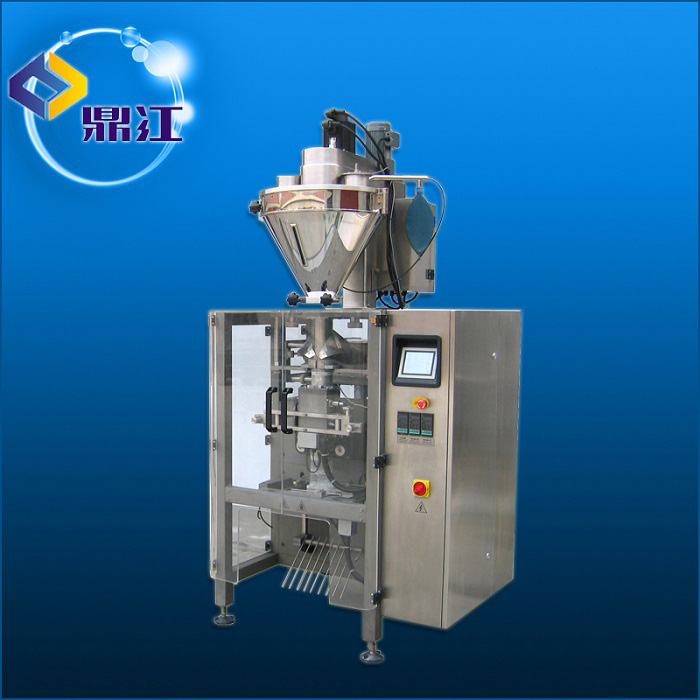

DJ -3B(250)  vertical bag fully automatic packaging machine, this machine can finish bag making, measuring, filling, filling nitrogen, code, cut bag, etc.Suitable for packing powdery product such as milk powder, monosodium glutamate, solid drink, white sugar powder , glucose, coffee powder , feed powder , pharmaceutical, pesticide, solid powder, granular additive, dyestuff, etc.

1、Technological  parameters
Model：DJ-3B(250)
Metering Mode Auger filling：Electronic-sensing weighing feedback
Bag size：W70-250mm L100-350mm
Package Weight ：10-3000g
Package Accuracy： ≤±1%
Packaging Speed ：25-60bags/min
Power Supply 380V/220V：50Hz/60Hz( Customizable 220V’s motor)
Air pressure： 6-8kg/cm㎡
Total Power： 6KW
Total Weight： 800Kg
Overall Dimensions：1500X1500X2600mm

2、Product  feature ：
Servo system with nice orientation.
Working states& operation messages shows in Chinese/English by touch screen ,Mix.100 recipes can be saved.
Cutting position & web-tracking can be adjusted through touch screen during the continuous running, presenting tidy seal and cut.
Temperature controller is uesd,difference in temperature range is in 3 degree.Dentiform sealer to seal hard.
Airproof configuration is used,low noise,free dust,especially sued to pack powdery.
Auger is drived by servo motor,airproof,gas-flushing and open-side filler.
Multiple bag types are available, for instance , pillow bag , stand-up bag , carrying girp  bag, etc.
The way of using is tele surveyor and can be adjusted.
The functions of trouble warning, for example : material being cut, safe-door being unlockde ,film departed, and coding ink out, etc.
