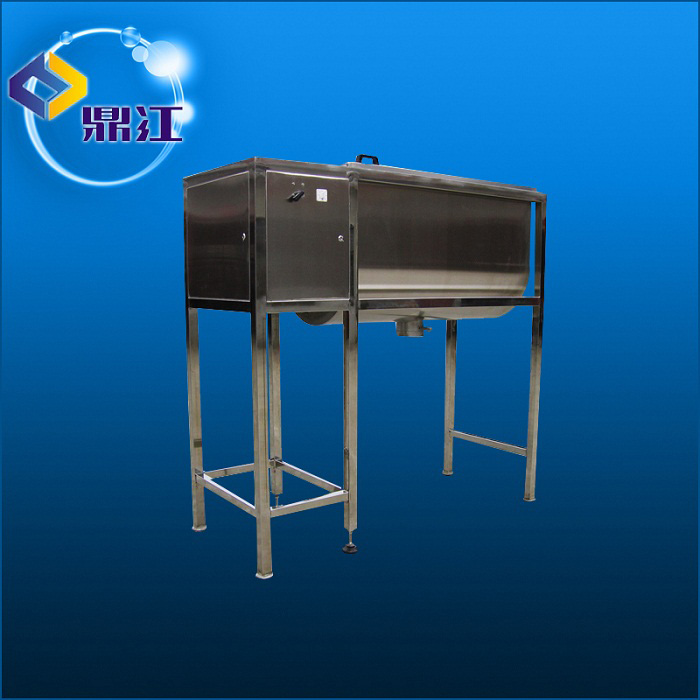

DJ-ribbon mixer, horizontal ribbon mixer is composed of spiral belt driving part;Outer spiral material from two side to the central pool, inner spiral will material from central to both sides, forming mixed convection.Ribbon mixer for viscous or have cohesion powder mixture has a good effect.

1、technical parameters：
Machine       model　　　DJ - 0.25　　　DJ - 0.5　　　DJ - 1　　　 DJ - 2
The whole volume　　　 0.3 m　　　　0.6 m　　　　1.2 m　　　　2.2 m
Loading coefficient　　　0.4-0.6　　　0.4-0.6　　　　0.4-0.6　　　0.4-0.6
Overall dimensions　　625 * 870 * 870 mm  2050 x880x2500mm  2200 x880x2500mm   3000 x1100x1600mm
The engine power　　　3.7 kw　　　　5.5 kw　　　　5.5 kw　　　11 kw
Equipment weight　　　400 kg　　　　600 kg　　　　700 kg　　　1500 kg

2、the product features：
1, produces maintenance-free vertical motors: positive &negative is adjustable.
2, positive and negative double screw, material is not easy to bridge, adaptable to materials.
3, stainless steel plate cover, stainless steel square tube frame structure is more compact, easy to clean up the material.
4, unique dustproof design, bearing from dust pollution.
