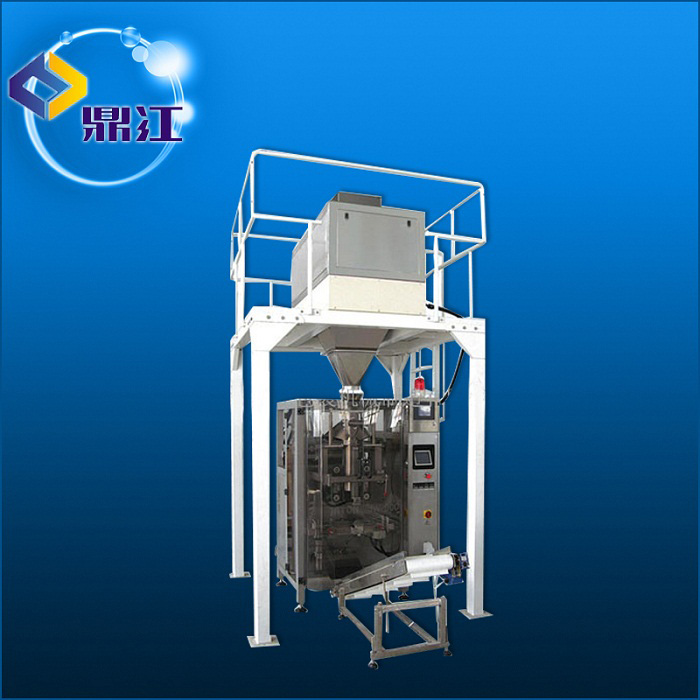

DJ - Z6 automatic grain bag machine, the machine can automatically complete metering, filling, bag making, cutting bag, nitrogen inflator, code, and other functions.Suitable for packing granular materials, such as rice, washing powder, monosodium glutamate, seeds, etc.

1、Technological parameters：
Model： DJ-Z6
Metering Mode：  weigher
Bag size： W:100-250mm L:100-350mm
Package Weight：50-1000g
Package Accuracy：±2g(According to the material )
Packaging Speed：20-50 bags/min
Power Supply ：3phase 380V/ 220V   50Hz-60Hz
Air pressure： 6-8Kg/cm2
Total Power ：4.5KW
Total Weight  ：800Kg
Overall Dimensions  1600*690*2860mm

2、Product  features：
The machine incluing Z type  conveyor , weigher ,main vertical packaging machine ,platform ,and finish product  conveyor  ,It  can automatically do bag-forming, weighing ,dosing, gas-flushing, coding,cutting.
Be applicable for packing gain  product,for instance,puff snack food ,potato chips ,crispy rice ,jelly ,candy ,apple chips ,dumpling ,smal cookies ,dry  fruit ,melon seeds ,roasted  seeds  and  nut ,medical  material  ,deep-frozen food ,etc.
Cutting position&we-tracking can be adjusted through touch screen during the continuous running.
Airproof configuration is used,low noise,free dust,especially used to pack powdery.
No need to adjust the product specification tools, all kinds of products to adjust parameter formula can be stored, reserve to use.
All the Chinese (English), according to the touch screen clearly shows the working state, operating instructions, etc., operation simple and intuitive.
Don't stop the film can be directly in touch screen to adjust sealing and cutting positions, correction, the sealing is flat and level, incision neatly.
The use of intelligent temperature controller, temperature can be controlled within the 3 degrees, tooth type sealing mouth, make the seal more firmly.
The function of packaging system various bag type, such as: plane bag, solid bag, handbag, etc.
