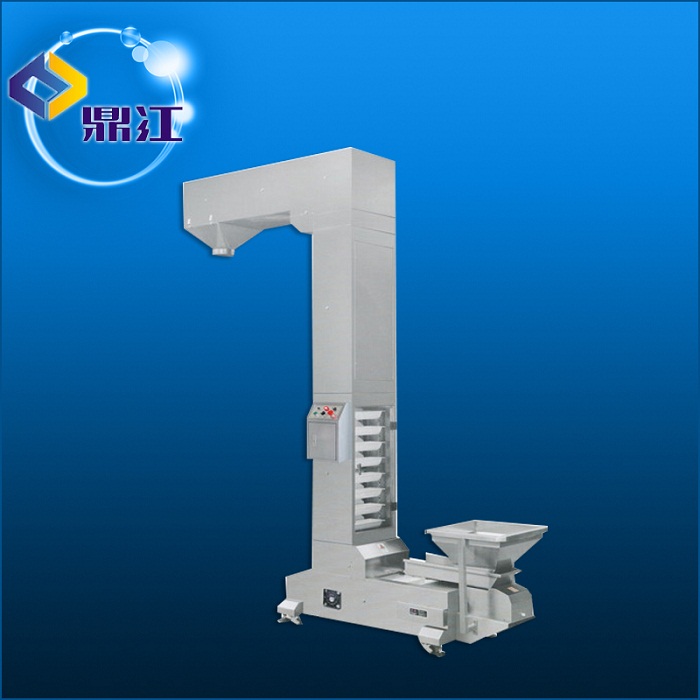

The elevator is used for transmission of puffed food, biscuits, peanuts, beans, sugar and other granular, block material.

1、Technological  parameter：
Type：DJ-Z type elevator
Power ：0.75~1.1KW
Conveying capacity：1.5-3m3/h
Conveyor bucket ：1.8L(420x140x70)
Voltage：380V 50-60HZ
Gross weight ： 500KG
Package Size：L2300×W1100×H1350mm


2、Product  feature ：
The eleator and electronic metering scale shall be used together,control circuit is used to control the  position of the material,realizing automatic feeding and stopping function.
The elevator can be made of stainless steel and carbon steel according to the customer choice.
Suitable for a variety of fragile and non-friable material hoist, such as potato chips, prawn crackers, crispy rice, all kinds of Hardware, medicine, chemical raw materials, grain feed, ceramic raw materials.
