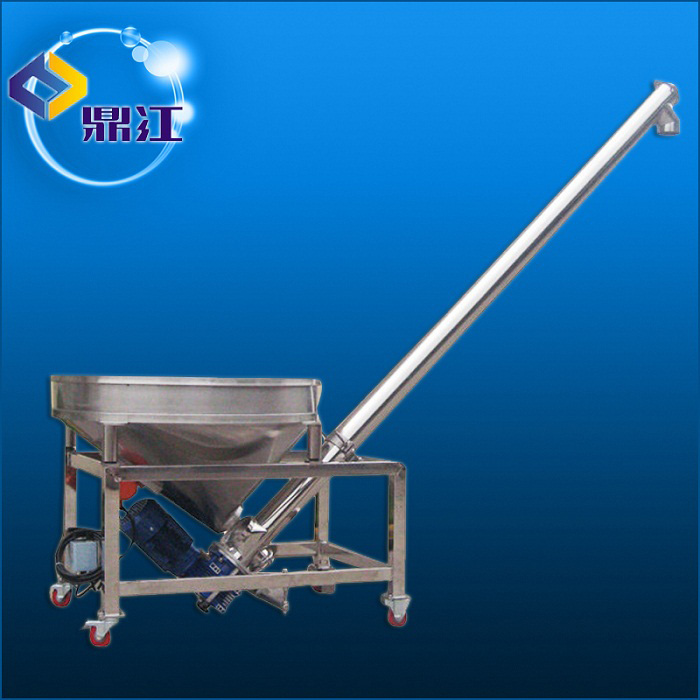

DJ-S3 Auger screw conveyor, the machine  can improve a variety of powder materials, can be packing machine with our company level track automatic feed, and also can be used separately on other occasions.In addition to the motor, bearing and frame the rest for stainless steel.

1、Technological  parameter
Capacity：3-5m3/h (Other capacity optional)
Hopper size：230L
Machine Power ：1200W
Power Supply：3p-380V 50-60 Hz
Conveyor Height ：1870mm from floor
Machine weight ：150Kg

2、Product  feature
This conveyor is suitable for multiple powdery product. Working together with powder packing machine, the product feeding of the conveyor is controlled to retain the product level in the product cabinet. And the machine can be used independently. All parts are made of stainless steel except the electromotor, bearing and support frame.
Using double electromotors : feeding motor & vibrating motor, separately controlled.
Product funnel is design to be adjustably vibratile, which lead to avoid product blocking and improve the adaptation of different products.
Product funnel can separate from the tube for easy assembly.
Special anti-dust design to protect bearing from dust.
In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassemblied for washing.
